Route Wiring

ContentObjectsRoutes

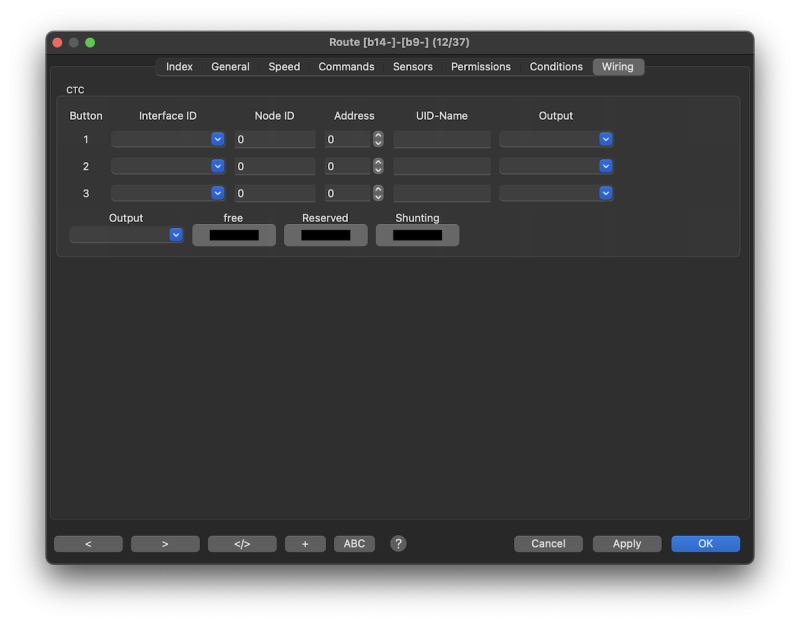

Route Dialog Wiring Tab:

CTC

Output

Alternatively output objects can be used for controlling the CTC.

Button 1

Start button.

Button 2

End button.
If button 1 and button 2 are pressed the route will be locked with its own ID.

Button 3

Clear button.
If this button is pressed and also button 2 the route will be unlocked.
Button 1 and 2 should be reset by action or hardware before the unlock can take place.

Output

Instead of feedback signals for evaluating buttons on external hardware (e.g. a control panel), output objects in the track plan can alternatively be used as buttons for controlling the ZBL. The output absolutely requires an address.
For feedback, the field remains blank.


Output for RGB LEDs

Selection of an output for the control of RGB LEDs, e.g. for illuminating the track symbols of a control panel. Several outputs can be entered separated by commas, a selection is then not possible.
Color support must be activated in the properties of the output.
Clicking on the buttons 'free', 'Reserved' and 'Shunting' opens a dialog for setting the desired color.
