Signal Wiring

CTC

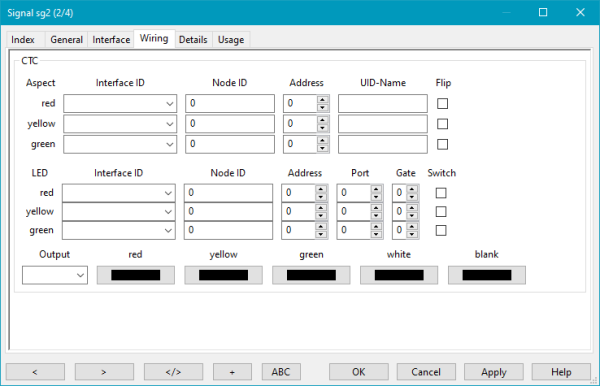

These optional addresses are used to control the signal aspects by CTC.
The setup is equal to the Sensor setup.
For more information see also:

Command

Input(sensor) addresses for controlling the signal aspects.

Led

Output addresses for controlling the leds on the CTC or switch panel to show the actual signal aspect.
One output is used for each aspect.
If using aspect numbers the corresponding value must be set.

Output for RGB-LED

Selection of an output for the control of Signal aspects with only one RGB LED. Color support must be activated in the properties of the output.
Click on the buttons 'red', 'yellow', 'green', 'white' and 'blank' opens a dialog for setting the color to be displayed.
