Content → Objects → Switches

• Index | General | Interface | Wiring | Control | Frog | Trackdriver | Usage | Menu

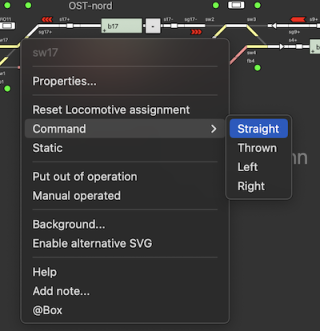

Switch Context Menu

Open the dialog Switch: General

See "Reset Locomotive assignment" in the Block menu

The Switch is locked against controlling if a Loco is assigned.

Commands can be selected in the submenu.
The number and type of commands depend on the type of switch/crossing.

When a switch/crossing is locked, the command can be forced by <Ctrl> + <left mouse click>.

See Switch: General

See: Switch: General

Setting the Symbol background color with the standard "Color" dialog of the operating system. "Black" must be set for a transparent background.

Öffnet die Wiki-Seite Weichen im Standard-Browser.

Öffnet den @Box-Dialog

A copy of the xml section of the switch/crossing from the plan file is copied to the clipboard.

The switch/crossing is deleted from the track plan.

In the submenu, the orientation of the switch/crossing symbol can be rotated step by step or specifically.

Open the Selct dialog.
