Some systems can process text messages on displays like CBUS CAN-GC8, WIO and RocNetNode.
To use this feature the address must be greater than zero.

cmdr0A40 OText    0281 send text [Good morning rob]
cmdr0A40 OCBUS    1638 translate: tx
cmdr0A40 OCBUS    2028 set display 5600:1 to "Good morning rob"
cbwriter OCBUS    0170 OPC_ACDAT(0xF6) address=5600 display=1 line=0 nr=0 text=[Good]
cbwriter OCBUS    0170 OPC_ACDAT(0xF6) address=5600 display=1 line=0 nr=1 text=[ mor]
cbwriter OCBUS    0170 OPC_ACDAT(0xF6) address=5600 display=1 line=0 nr=2 text=[ning]
cbwriter OCBUS    0170 OPC_ACDAT(0xF6) address=5600 display=1 line=0 nr=3 text=[ rob]

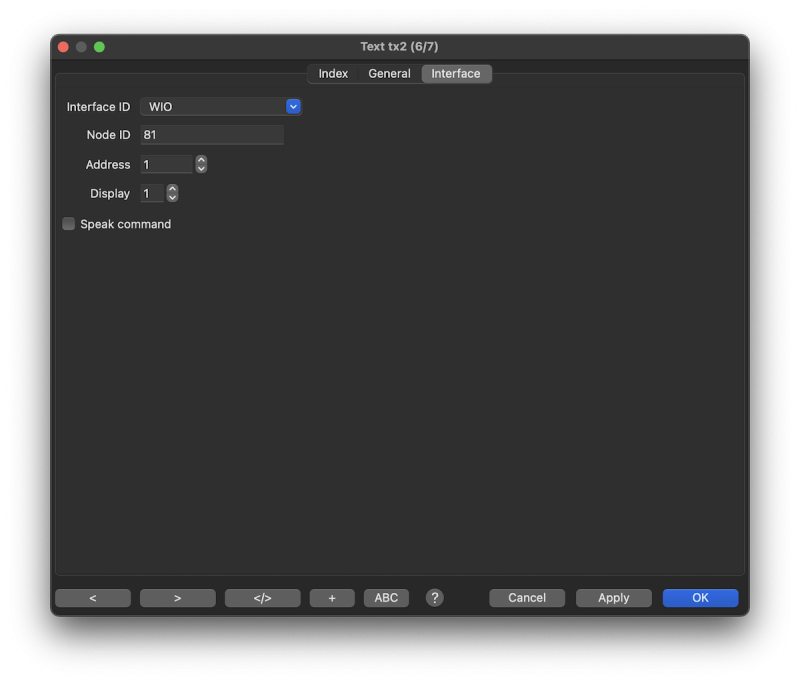

If more than one command station is used, then the command station that is responsible for controlling the decoder is specified in this field. The "Interface identifier" field can remain empty if the object is connected to the first command station (first 'digint' in rocrail.ini) from the list of command stations.

Address of the Display module.

The display number on the module. Range from 1 to 8.

The RocNetNode, 11.204+, can also be used to let the text speak instead of showing it on a display.
To use this feature the Bus must be greater than zero. (RocNetNode ID)
