With this type it is possible to control decoders which use their own address for the respective track position and are not compatible with the standard decoders.

This is the case, for example, with the rotary transfer table decoder DSB 2022.

The interface address can be left empty, the decoder addresses for each track connection are entered in the tracks under Address. Track nr. 180 is for the Turn180° command address. This track must be set to NOT visible.

Example track 12 on address 56, port 3 and gate Green:

The address field set to zero and the port between 229 and 236 G/R.

Track number 180: Address field set to zero and the port to 226 G.

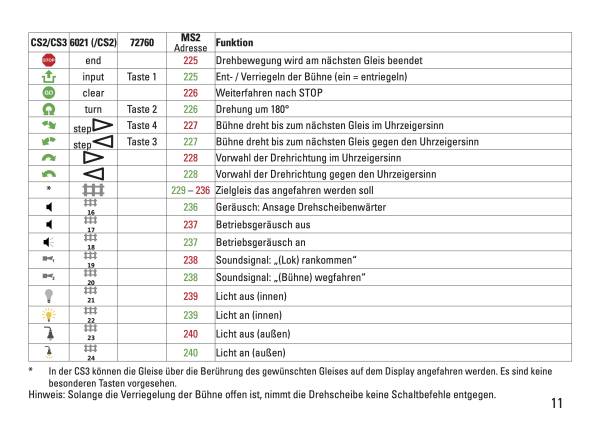

Functions can be switched with outputs. Address field set to zero and the port to <see command table>.
